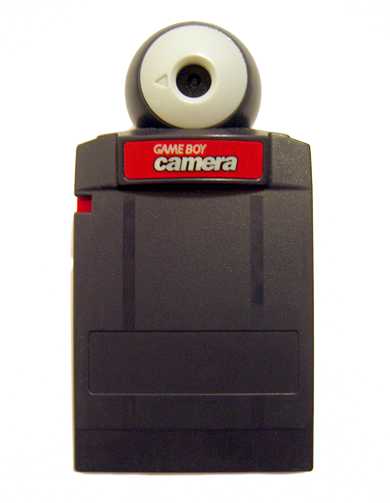

I happened to find an old Gameboy camera on a jumble sale. The thing as such is not worth much, got it for a few bucks. But the image sensor can be used to make lowres pictures using a microcontroller with an ADC.

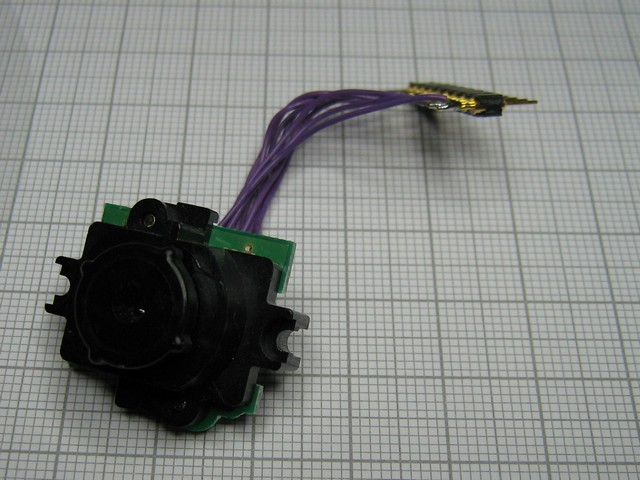

The extracted M64282FP. Quick and dirty wired up to an ATmega32. The datasheet can be found in the internet.
el huron lives
The picture is displayed in a little Windows application.
Thats it... :-)
